Akor Stainless, a reputable manufacturer and supplier of stainless steel based in Abuja, Nigeria, is celebrated for providing top-notch stainless steel products designed to cater to both industrial and architectural needs. One of its standout offerings is the Stainless Steel Welded Tubing, known for its precision, durability, and resistance to corrosion. Crafted with cutting-edge forming and welding technology, these tubes feature smooth surfaces and consistent dimensions. Akor Stainless offers welded tubing in a variety of grades, diameters, and finishes, making it perfect for construction, food processing, pharmaceuticals, and petrochemicals, ensuring dependable performance and longevity even in tough environments.
Stainless Steel Welded Tubing from Akor Stainless is mainly made up of iron, chromium (16–20%), and nickel (8–12%), with added elements like molybdenum, carbon, and manganese to boost its mechanical strength and resistance to corrosion. The tubes are created by rolling and welding stainless steel strips, then annealed to achieve a uniform grain structure and high ductility. In terms of mechanics, the tubing boasts a tensile strength of around 515–620 MPa, along with excellent weldability, formability, and toughness. Its ability to resist oxidation and rust ensures a long lifespan, while the smooth internal finish promotes efficient flow and hygiene in sensitive applications.
| Range : | 1/8” NB to 36” NB, 1/4” OD to 36” OD |
|---|---|
| Outer Diameter : | 6.35 mm O.D to 114.3 mm O.D |
| Thickness : | 0.8 mm to 12.7 mm |
| Length : | up to 26 Meters |
| Specifications : | ASTM A312 / ASTM SA312 |
| Types : | As Welded, EFW, ERW |
| End : | Plain End, Beveled End |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304 | min. max. | – 0.08 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – 0.10 |
| 304L | min. max. | – 0.030 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 12.0 | – 0.10 |
| 304H | min. max. | 0.04 0.10 | – 2.0 | – 0.75 | -0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – |
| Element | SS 304 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.

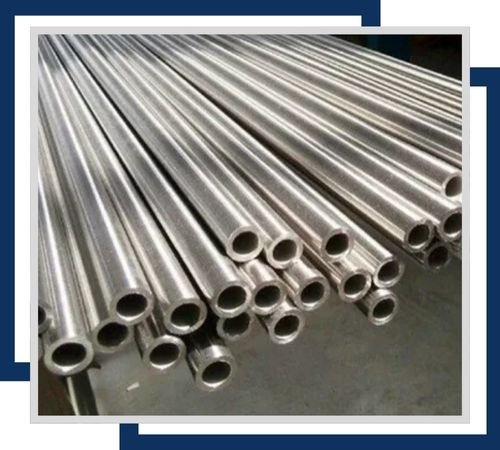

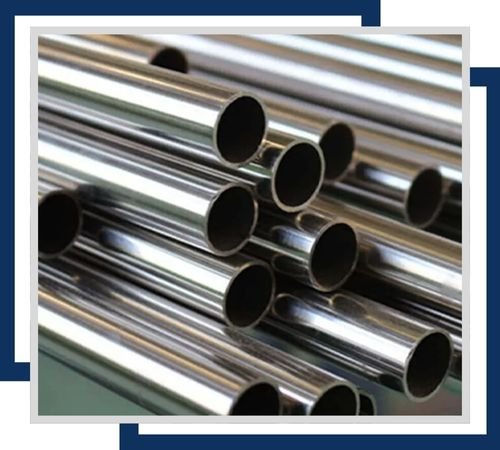

Stainless steel welded tubing are formed by welding stainless steel strips or plates. They offer strength, corrosion resistance, and cost-effectiveness, suitable for various industrial, commercial, and residential applications.

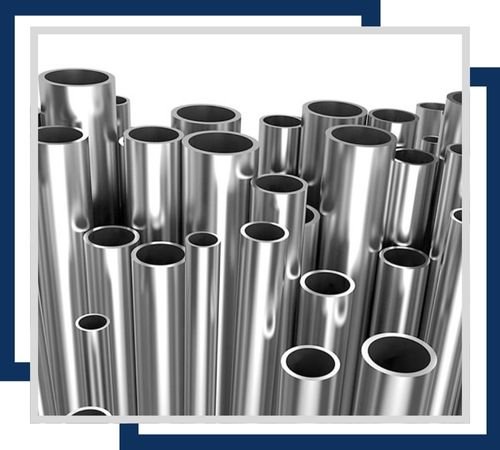

Stainless steel ERW (Electric Resistance Welded) tubing are produced by welding steel strips. They offer cost-effective, high-strength, and corrosion-resistant solutions for various industrial applications, providing durability and reliability.

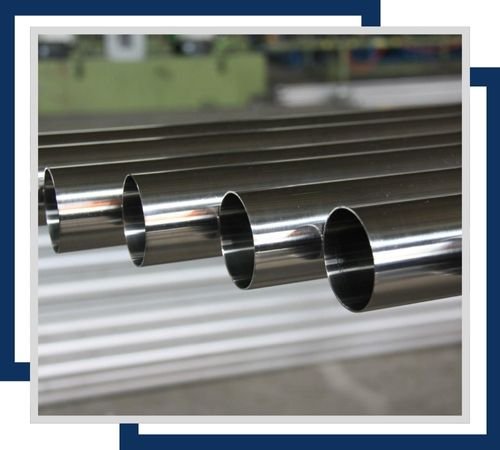

Stainless Steel EFW (Electric Fusion Welded) tubing are produced by electrically fusing stainless steel plates or strips. They offer high precision and strength, suitable for high-pressure and demanding applications.
SS HFW (High-Frequency Welded) tubing are stainless steel tubings welded using high-frequency currents. They provide strong, precise joints, making them ideal for structural applications and high-strength requirements.

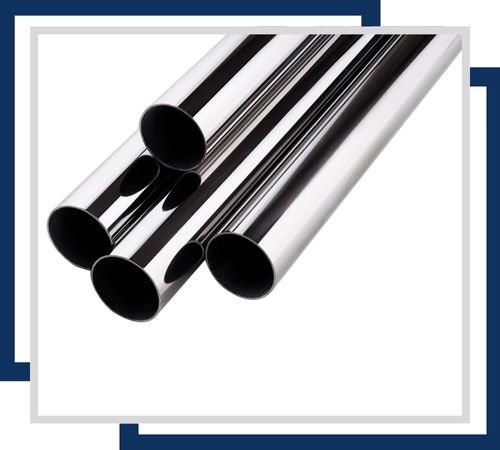

Stainless Steel butt-welded tubing are joined by aligning and welding the ends together. This method creates strong, leak-proof joints, ideal for high-pressure and high-temperature applications in various industries.
Stainless Steel laser-welded tubing use laser technology for precise, clean welds. They offer high accuracy, minimal thermal distortion, and are ideal for applications requiring tight tolerances and smooth finishes.
The tests include destructive testing methods and others which do not destroy the material but analyze the testing quality. We are developing into all modern aspects. Offering services to any customer that provides security assurance, we live achievement and a few policies such as consideration of diversity and advantage of best quality, quality reputation, and our name in the industry. Best quality speaks for itself, especially when the customer is satisfied after delivery. Logistical support at the most convenient part to ensure that shipping for emergency stock and standard packing materials is done correctly.
Stainless Steel Welded Tubing from Akor Stainless finds extensive use in various industries where durability, hygiene, and strength are crucial. In construction, it’s perfect for handrails, balustrades, and structural supports. In the food and beverage industry, it guarantees sanitary fluid transport thanks to its smooth, easy-to-clean surface. Additionally, it’s utilized in chemical processing, heat exchangers, water treatment systems, and exhaust applications. The tubing’s corrosion resistance and appealing look make it ideal for both functional and aesthetic purposes.
