Akor Stainless, a reputable manufacturer and supplier located in Abuja, Nigeria, has earned a solid reputation for crafting top-notch Stainless Steel 440C Sheets and Plates that adhere to international standards. These sheets and plates are meticulously designed using cutting-edge technology to ensure outstanding hardness, strength, and wear resistance. Renowned for their ability to endure high stress and resist corrosion, Akor Stainless 440C Sheets and Plates are perfect for rigorous industrial and engineering applications. The company’s dedication to quality assurance and customer satisfaction guarantees that their products are not only durable but also high-performing, catering to a wide range of operational needs.
The composition of Stainless Steel 440C Sheets and Plates primarily includes chromium (16–18%), carbon (0.95–1.20%), manganese, silicon, along with trace amounts of molybdenum and nickel. This rich blend of carbon and chromium imparts remarkable hardness, corrosion resistance, and edge retention. The alloy boasts a tensile strength of approximately 760 MPa and a yield strength of around 450 MPa, achieving a Brinell hardness of up to 285 HB. It also retains good mechanical stability at higher temperatures, along with decent ductility and machinability following appropriate heat treatment.
| ASME/ASTM Grade | ASTM A480 / ASME SA480 |
| Width Available | 1800mm, 3000mm, 1500mm, 2000mm, 1000mm, 2500mm, 1219mm, 3500mm etc |
| Thickness | 4mm – 100mm |
| Supply Length | 2000mm, 2440mm, 6000mm, 5800mm,3000mm etc |
| Most Commom Finish | SATIN (Met with Plastic Coated), 2B, Cold rolled sheet (CR), BA NO(8), Hot rolled plate (HR), 2D |
| Surface types | sand blast, etching, NO.1, embossed, hair line, 2B, Brush, BA, 2D, checkered, NO.8, 8K, NO.4, mirror, etc |
| Available Plate Form with us | Foils, Perforated Sheets, Plain Sheet, Coils, Rolls, Flats, Shim Sheets, Chequered Plate, Strip, Blank (Circle), Ring (Flange) etc. |
| Mo | S | C | Cr | Si | Mn | N | Ni | P |
| 0.75 | 0.03 | 0..95-1.20 | 16.00-18.00 | 1 | 1 | – | – | 0.04 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max# | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.

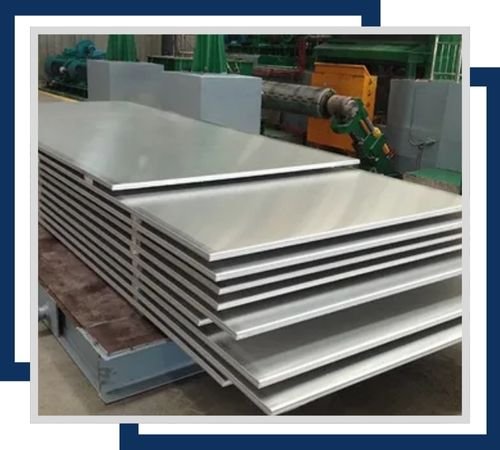

Stainless Steel 440C Hot Rolled Sheets have a high corrosion resistance and durability to be used for applications that need high strength. Usually available from 3mm to 50mm in thickness and up to 2000mm in width. These sheets are used for heavy-duty conditions where strength and toughness are in demand.

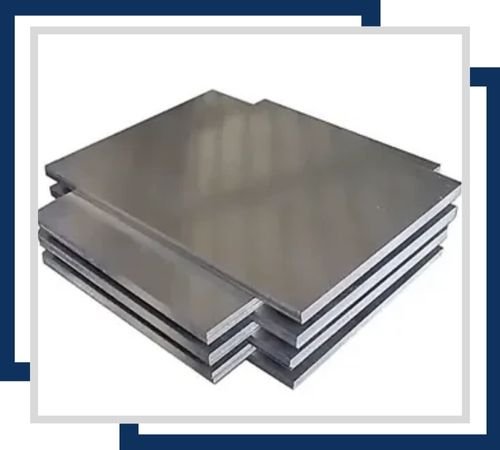

Stainless Steel 440C Cold Rolled Plates have excellent corrosion resistance and a smooth finish. The plates are generally supplied in the thickness of 0.5mm to 6mm and width up to 1250mm. The plates are best suited for applications where precision is needed along with high-quality surface finish.
Stainless Steel 440C chequered sheet is used that provides raised patterns for enhanced friction resistance and scratch resistance. Highly corrosion resistant products with sizes as follows: -Thickness range 1.5 mm to 6 mm. They are available in standard sizes up to 1000mmx2000mm. Flooring application, safety purpose, industrial areas, etc.

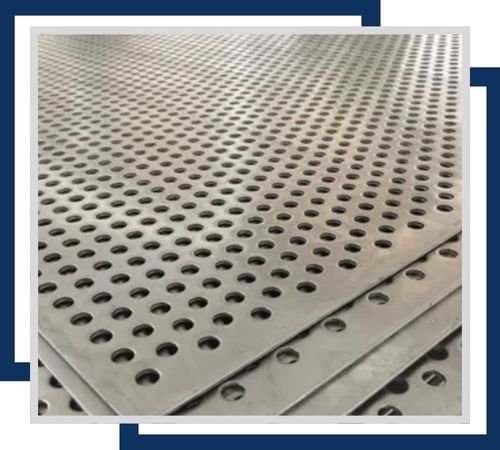

Stainless Steel 440C Perforated Sheets combine corrosion resistance with functional perforations for ventilation and filtration. Thickness ranges from 0.8mm to 6mm, with hole sizes and patterns. The sheets are used in architectural, industrial, and filtration applications where strength and design flexibility are needed.

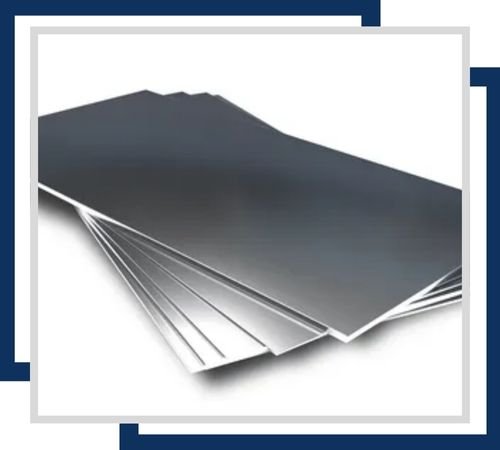

Stainless Steel 440C shim plates are provided with precise thickness tolerances and excellent corrosion resistance. They are available in the range starting from the thickness of 0.1mm up to 300mm width. It is ideal for applications requiring the proper spacing and adjustment, and for such machinery and assembly, it is preferred.

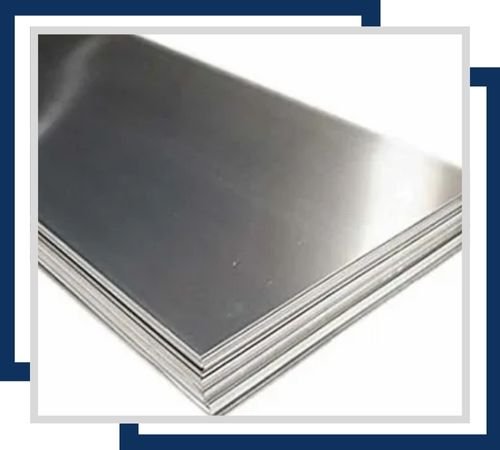

Stainless Steel 440C Polished Sheets offer a bright luster appearance with excellent corrosion resistance. Generally available in 0.5mm to 10mm thicknesses and up to 2000mm widths. These sheets are used in decorative and high-end applications where aesthetics and durability are important.
Akor Stainless specializes in bringing excellent customer experience with complete documentation for the superior-quality Stainless Steel 440C Sheets and Plates we offer to our customers. We provide commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports that prove authentic and superior quality. In addition, all our Stainless Steel 440C Sheets and Plates are provided with various test certificates such as MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. These detail documents reflect that we are very customer-centric, and we aim for excellence with our products.
Stainless Steel 440C Sheets and Plates find extensive applications in industries where high hardness and wear resistance are crucial. They are frequently used in the production of surgical instruments, bearings, valves, and pump components. Moreover, they play a vital role in the aerospace, defense, and automotive sectors for precision parts that demand strength and corrosion resistance. The material’s durability and ability to be polished also make it ideal for cutlery, molds, and dies. With its outstanding performance attributes, 440C stainless steel ensures a long service life in both mechanical and corrosive environments.
