Akor Stainless, located in Abuja, Nigeria, is a well-respected manufacturer and supplier of high-quality stainless steel products, such as Stainless Steel 405 Sheets and Plates. With a strong commitment to quality, precision, and customer satisfaction, Akor Stainless provides materials that are designed to excel in tough industrial environments. Our Stainless Steel 405 Sheets and Plates are crafted using cutting-edge technology and adhere to international standards for strength and durability. Built to withstand high temperatures and offer moderate corrosion resistance, these products cater to a diverse array of industries throughout Nigeria, including automotive, construction, energy, and general fabrication.
Stainless Steel 405 Sheets and Plates are a type of ferritic stainless steel, mainly made up of iron, with 11.5–14.5% chromium and a touch of aluminum to boost oxidation resistance. This alloy is designed to minimize hardening during welding, which results in impressive toughness and ductility. In terms of mechanical properties, it boasts a tensile strength ranging from 380 to 450 MPa, a yield strength between 170 and 240 MPa, and an elongation of about 20%. With its outstanding resistance to scaling and oxidation at high temperatures, Stainless Steel 405 is not only easy to form and weld but also ideal for thermal processing and structural applications that need to maintain stability when exposed to heat.
| specifications | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| ELEMENT | C | Mn | P | S | Si | Cr | Al | Fe |
| SS 405 | 0.08 max | 1.00 max | 0.040 max | 0.030 max | 1.00 | 13.00 | 0.2 | 85 |
| Grade/Temper | Tensile Strength ksi (min.) | Yield Strength 0.2% ksi (min.) | Elongation -% in 50 mm (min.) |
| SS 405 | 448 MPa | 276 MPa | 25.00% |
Contact us to get a quick quote for your requirement.
Stainless Steel 405 Hot Rolled Sheets have reasonable corrosion resistance; it is preferred for high-strength and toughness applications. This product is commercially available in range from 3mm to 50mm width up to 2000 mm.
Stainless Steel 405 Cold Rolled Plates provide excellent resistance to corrosion combined with a refined surface finish as well as enhanced dimensional accuracy. The plates in this product line are available within a thickness ranging from 0.5 mm to 6 mm and width ranges up to 1500mm.
Stainless Steel 405 Chequered Plates offer raised patterns to provide slip resistance and durability and have moderate corrosion resistance. It is widely available in 2mm to 12mm in thickness and 1500mm width for flooring and safety applications.
Stainless steel 405 perforated sheets allow for customizable holes in them through which different filtering and ventilation types can occur by combining the necessary corrosion-resistant factors. Stainless Steel 405 sheet thickness range-1mm -5mm width up to2000mm and height up to1000mm End.
Stainless Steel 405 Shim Sheets have moderate corrosion resistance and are used for precise spacing and alignment in machinery. Thicknesses range from 0.1mm to 3mm, and sizes go up to 2000mm x 1000mm, making them very versatile for application.

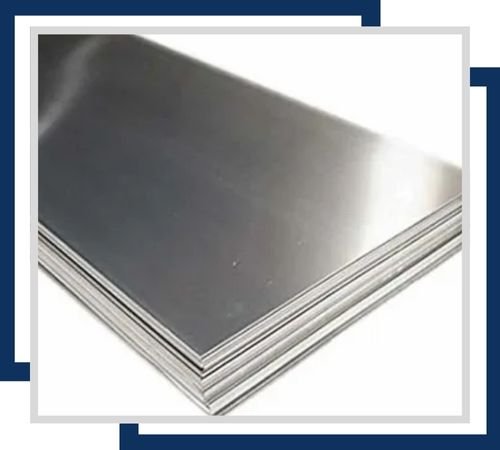

Stainless Steel 405 Polished Plates offer enhanced corrosion resistance and a high-quality surface finish. Typically available in thicknesses from 0.5mm to 50mm and widths up to 2000mm, these plates are used in decorative and high-visibility applications.
Stainless Steel 405 Sheets and Plates are a go-to choice for applications that require both heat resistance and a bit of corrosion protection. You’ll often find them in the automotive sector, where they’re used for exhaust parts, manifolds, and mufflers. In the power and energy industries, they play a crucial role in turbine housings, heat exchangers, and annealing boxes. The construction and fabrication fields also rely on these sheets and plates for roofing, cladding, and industrial equipment that needs to withstand high temperatures. Thanks to their impressive formability, weldability, and resistance to oxidation, Stainless Steel 405 Sheets and Plates are a dependable option for creating heat-resistant and structurally sound components.
