Stainless Steel 317 tubing is a type of austenitic alloy that combines chromium, nickel, and molybdenum (UNS S31700) to offer exceptional resistance to corrosion, especially when it comes to sulfuric acids, chlorides, and other harsh chemical environments. The inclusion of molybdenum significantly boosts its ability to resist pitting and crevice corrosion, making it even more reliable than standard 316 stainless steel.
Typically, this alloy consists of 18–20% chromium, 11–15% nickel, 3–4% molybdenum, up to 0.08% carbon, and up to 2% manganese. Its mechanical properties are impressive, featuring a tensile strength of around 515 MPa, a yield strength of about 205 MPa, and an elongation of roughly 35%. This ensures that it maintains good ductility and strength, even when exposed to high temperatures.
| ASTM A213 / ASME SA 213 | Standard Specification for SS TP 317L Seamless Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes |
| Shapes | ASME SA213 TP317L Round, Rectangular, Square, Hydraulic, Straight, “U” Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Surface Finish | BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish DIN 1.4438 Stainless Steel 317L Tubing or Custom Finish as per customer’s specification |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Relevant Standard | ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 |
| SS 317L | Maximum |
|---|---|
| Ni | 11 – 15 |
| C | 0.035 Maximum |
| Mn | 2 Maximum |
| P | 0.040 Maximum |
| S | 0.03 Maximum |
| Si | 1 Maximum |
| Cr | 18 – 20 |
| Mo | 3 – 4 |
| N | – |
| Element | AISI 317L |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Range | 1454 °C (2650 °F) |
| Tensile Stress | Psi – 75000 , MPa – 515 |
| Yield Stress (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Hardness (Brinell) |
Contact us to get a quick quote for your requirement.
We offers rigorous testing and certification of stainless steel 317 tubing to ensure quality and reliability. Each batch undergoes extensive testing, including chemical composition analysis, mechanical property testing and dimensional verification. Certificates of Compliance (CoC), Mill Test Reports (MTR), and other quality documents have been provided to also ensure transparency.

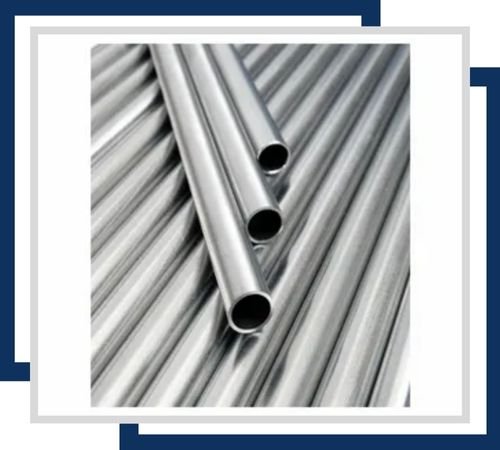

This tubing is produced without welds, offering superior strength and uniformity. It typically ranges from 1/8″ to 12″ in diameter. It is highly resistant to corrosion, particularly in chloride environments.

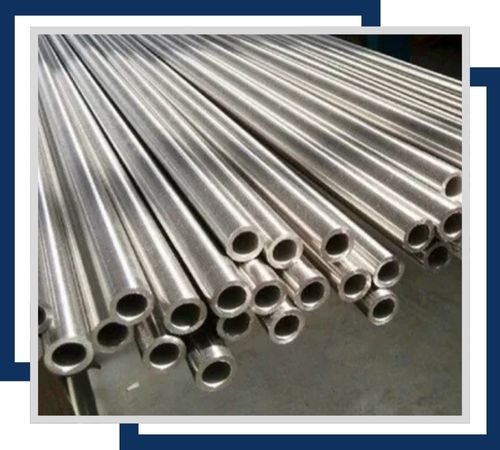

Manufactured by welding a strip of stainless steel, this tubing is suitable for applications requiring moderate strength and corrosion resistance. Sizes generally range from 1/4″ to 6″ in diameter. It provides good resistance to corrosive environments, especially those with chlorides.
Designed for use in heat exchangers, this tubing is available in diameters from 1/2″ to 2″ and offers excellent heat transfer properties. It is highly resistant to corrosion, making it ideal for aggressive chemical environments.

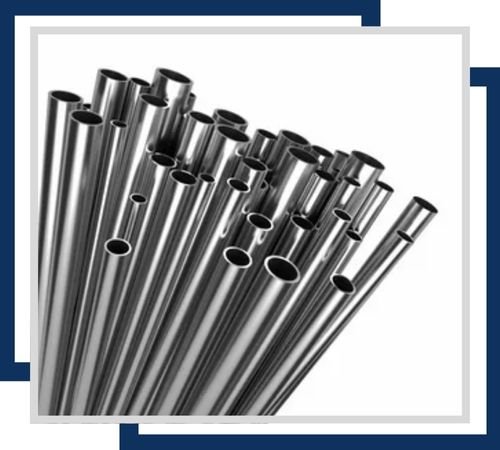

This tubing is used for precise measurement and control applications, with sizes typically ranging from 1/16″ to 2″ in diameter. It offers excellent resistance to corrosion and maintains integrity under high pressure.

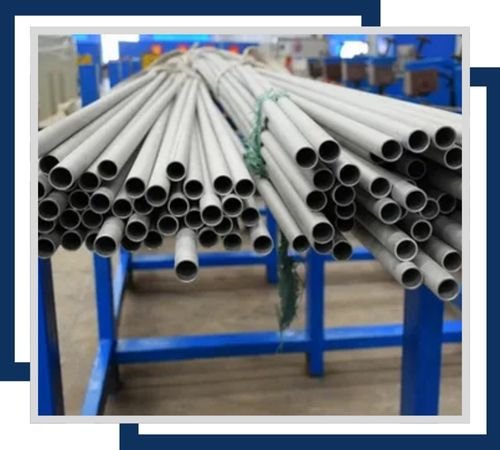

Engineered for high-temperature applications, these tubes usually come in diameters from 1/2″ to 4″. They provide robust resistance to oxidation and scaling, making them suitable for boiler systems.

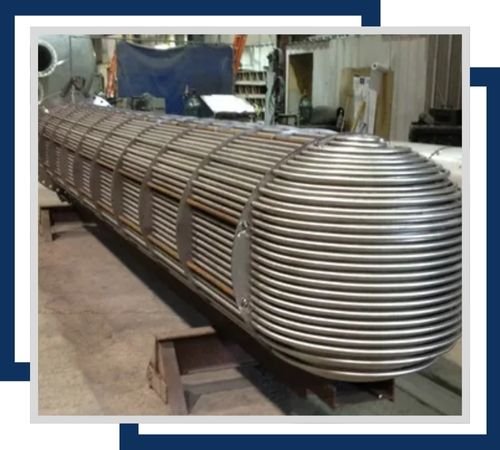

U-Tubes are used in various heat exchanger and condenser applications, with sizes commonly from 1″ to 3″ in diameter. They are highly resistant to corrosion and can withstand the thermal stresses of heat exchange processes.
These tubes are specifically designed for condenser systems, with dimensions typically ranging from 1/2″ to 2″ in diameter. They offer excellent resistance to corrosion from steam and other condensate environments.

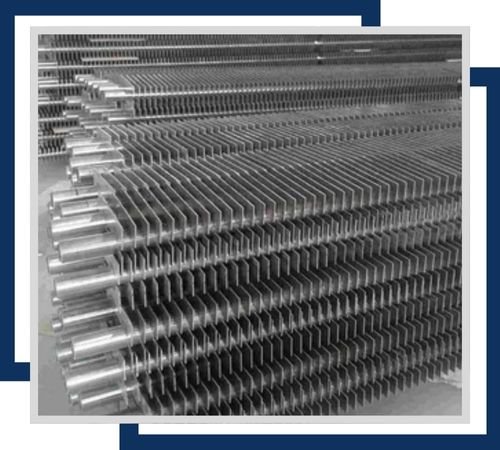

Used for heat transfer applications, these tubes are available in various diameters, often from 1/2″ to 2″. They feature enhanced surface area for improved heat exchange efficiency and are highly resistant to corrosion.
You’ll often find Stainless Steel 317 tubing in applications like chemical processing, the pulp and paper industry, marine settings, condensers, heat exchangers, and pollution control equipment. Its outstanding resistance to chemical attacks and high-temperature oxidation makes it a top choice for managing tough industrial fluids and corrosive environments.
