Home > Sheet and Plates > Stainless Steel 317 Sheet and Plates
Stainless Steel 317 sheets and plates are crafted from a special austenitic chromium-nickel-molybdenum alloy (UNS S31700) that stands out for its exceptional resistance to corrosion, especially in environments with chlorides, sulfur compounds, and acidic substances. Thanks to its higher molybdenum content, it offers enhanced protection against issues like pitting, crevice corrosion, and chemical attacks, making it a more robust choice compared to standard 316 grades.
Typically, the chemical makeup includes 18–20% chromium, 11–15% nickel, 3–4% molybdenum, up to 2% manganese, and a maximum of 0.08% carbon. In terms of mechanical properties, it boasts a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of about 35%, which ensures excellent formability and toughness.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.

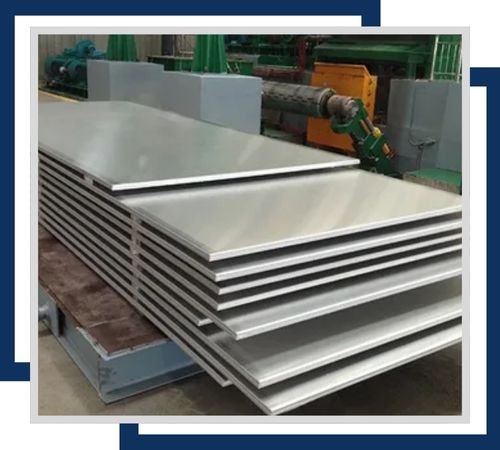

Stainless Steel 317 Hot Rolled Sheet and Plates provide excellent strength along with excellent corrosion resistance for high-temperature and aggressive chemical environments. They are used in industrial applications requiring durability and toughness.

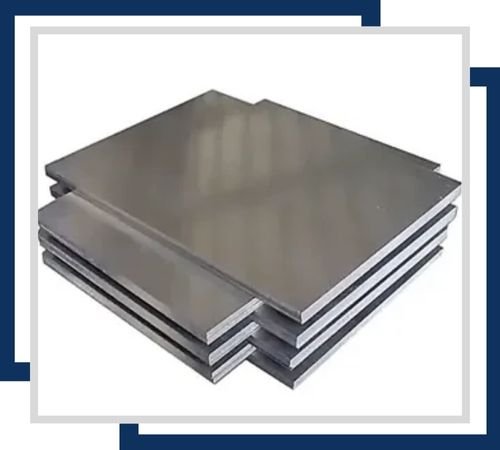

Stainless Steel 317 Cold Rolled Sheet and Plates provide a smooth surface finish and precise dimensions, suitable for any applications in chemical, marine, pharmaceutical industries with high requirements of superior corrosion resistance and aesthetic quality.

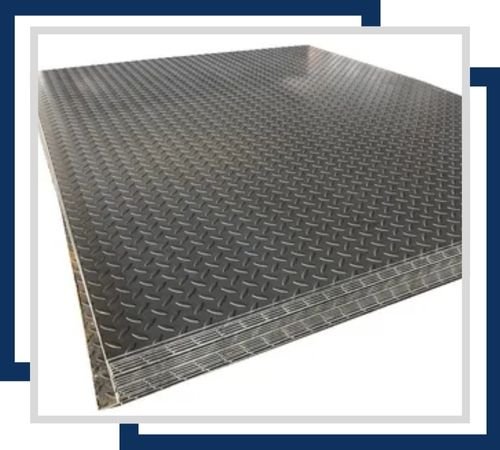

Stainless Steel 317 Chequered Sheet and Plates are used in slip-resistant and long-lasting applications like flooring and stair treads. They are excellent corrosion-resistant materials, which can be used for both industrial and decorative purposes.

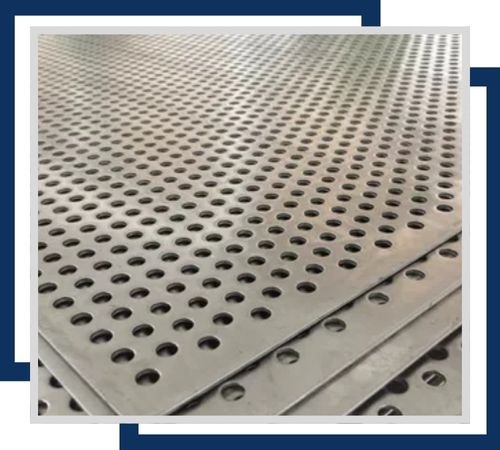

Stainless Steel 317 Perforated Sheet and Plates are used for filtration, ventilation, and architecture. It incorporates strength with the corrosion resistance capabilities of the plates along with useful perforations; hence, ideal for custom design and structural purposes in aggressive applications.

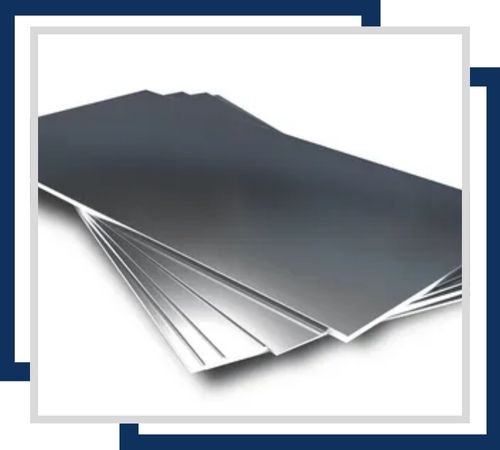

Stainless Steel 317 Shim Sheet and Plates are deployed for precision spacing and alignment within machinery and equipment. It shows high strength as well as resistant to corrosion features, thus sustaining stability and endurance in critical operations.

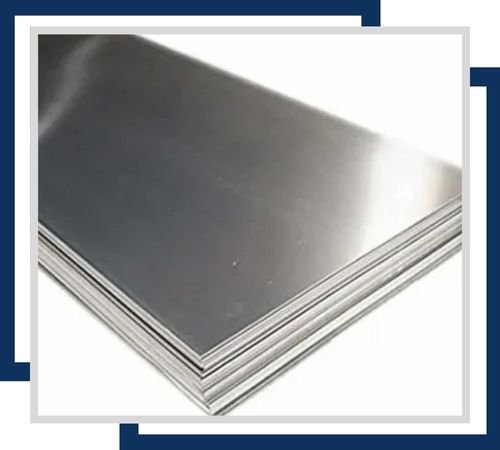

Stainless Steel 317 Polished Sheet and Plates have a very high-quality, reflective finish which is suitable for decorative and architectural applications. These have excellent corrosion resistance and are used in the environments where the appearance and durability are key requirements.
You’ll find Stainless Steel 317 sheets and plates commonly used in various industries, including chemical processing, marine applications, paper and pulp production, condensers, and pollution control equipment. Their remarkable corrosion resistance, ease of welding, and strength at high temperatures make them ideal for constructing tanks, heat exchangers, and structural components that need to withstand tough industrial conditions.
