Akor Stainless is a reputable manufacturer and supplier of Stainless Steel 316L Flanges located in Abuja, Nigeria. The company focuses on crafting high-quality low-carbon austenitic stainless steel flanges that are built for exceptional corrosion resistance and durability. Designed to thrive in tough chemical, marine, and high-pressure settings, SS 316L Flanges provide outstanding protection against pitting and crevice corrosion. Akor Stainless prioritizes precision in manufacturing, ensuring dimensional accuracy and adherence to international standards. These flanges are perfect for connecting pipes, pumps, and valves in sectors like petrochemical, pharmaceutical, food processing, and desalination, where hygiene and corrosion resistance are paramount.
Stainless Steel 316L Flanges are composed of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a maximum of 0.03% carbon. The lower carbon content boosts resistance to intergranular corrosion post-welding, while molybdenum enhances pitting resistance in environments rich in chlorides. These flanges showcase a tensile strength of 485 MPa, yield strength of 170 MPa, and an elongation of 40%. SS 316L maintains excellent mechanical stability across a range of temperatures and pressures. The alloy is known for its high toughness, weldability, and structural integrity, making it ideal for challenging chemical and marine applications.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 316L Flanges Akor Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Akor Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.
Stainless Steel 316L Threaded Flanges come in sizes from 1/2″ to 24″. Their corrosion resistance makes them ideal for low-pressure, non-welded applications. The threaded design allows for easy installation and removal without welding.

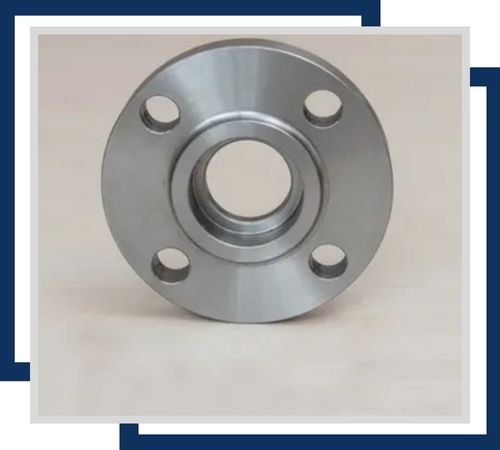

SS 316L Socket Weld Flanges are available in sizes from 1/2″ to 24″. They provide good corrosion resistance and are designed for small-diameter, high-pressure systems. The socket weld connection ensures a strong and secure joint.

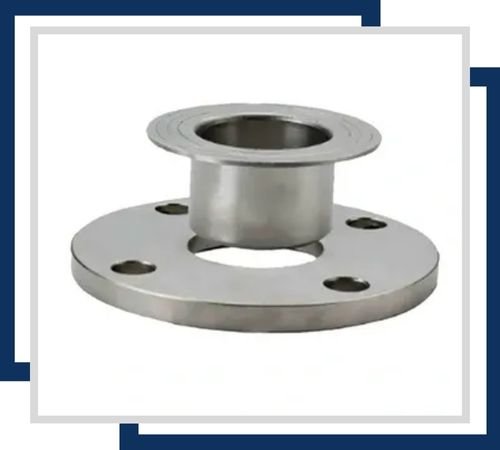

Stainless Steel 316L Lap Joint Flanges come in sizes from 1/2″ to 24″. They are highly corrosion-resistant and suitable for systems requiring frequent disassembly. The loose flange design allows for easy alignment and flexibility in installation.
Stainless Steel 316L Flanges are widely utilized in industries that demand robust, corrosion-resistant pipe connections. They are particularly suited for chemical plants, oil refineries, desalination systems, and marine applications due to their resilience against chloride exposure. The pharmaceutical and food sectors favor them for their sanitary and hygienic properties. In power plants and water treatment facilities, these flanges guarantee secure, leak-free piping connections. With their remarkable strength, resistance to oxidation, and minimal maintenance requirements, SS 316L Flanges are an excellent choice for various applications.
