Akor Stainless stands as a trusted partner for industrial and construction needs right here in Abuja, Nigeria, specializing in the supply of high-performance materials. We are particularly proud to offer our reliable range of Stainless Steel 310/310S Forged Fittings, components engineered for the most demanding environments. Our commitment is to provide not just a product, but a solution backed by local expertise and a dedication to ensuring your projects benefit from superior durability and corrosion resistance, delivered with the convenience of a local supplier.
The exceptional strength of these 310/310S fittings comes from a carefully balanced composition rich in chromium and nickel, which gives them outstanding resistance to oxidation and corrosion. This alloy is further stabilized to perform reliably under high temperatures, maintaining its structural integrity where other materials would fail. The forging process itself enhances these innate properties, creating a denser, more robust fitting with superior mechanical strength, ensuring they can handle significant pressure and stress in critical applications.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| SS 310S | 0.08 max | 2.0 max | 1.00 ma | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.75 max | 19.00 – 21.00 | 53.095 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures that it has the high quality standards with respect to Stainless Steel 310/310S forged fittings by using rigorous testing and certification processes. Every product under goes detailed check-up including dimensional checks, mechanical property tests, and assessment of corrosion resistance. Our fitting is certified for relevant industry standards, which guarantees superior performance and reliability across various applications.

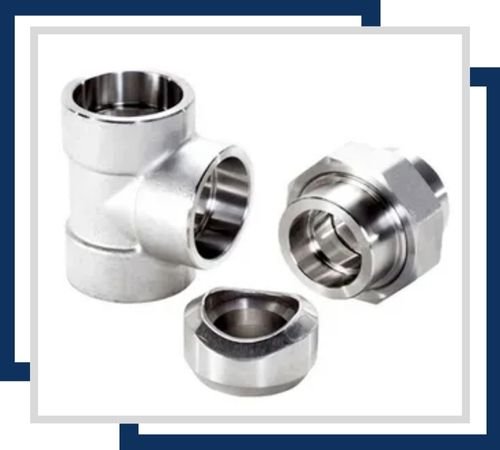

These fittings are highly resistant to oxidation and corrosion at elevated temperatures. They are designed for high-pressure applications and come in various sizes typically ranging from 1/2 inch to 4 inches. Socket weld fittings are ideal for applications requiring a strong, leak-proof connection.

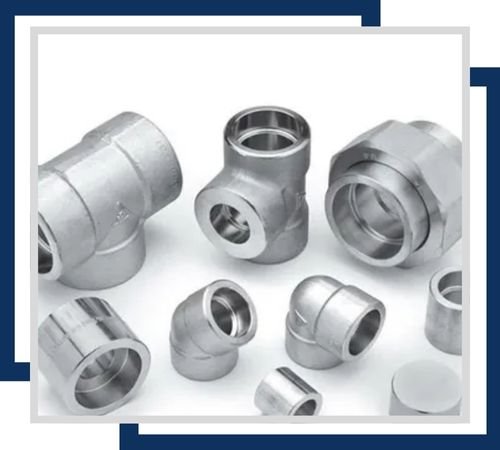

Threaded fittings in SS 310 offer excellent resistance to oxidation and corrosion, especially in high-temperature environments. Sizes generally vary from 1/8 inch to 4 inches. They are used for connecting pipes with threads, making them suitable for pressure-tight joints.

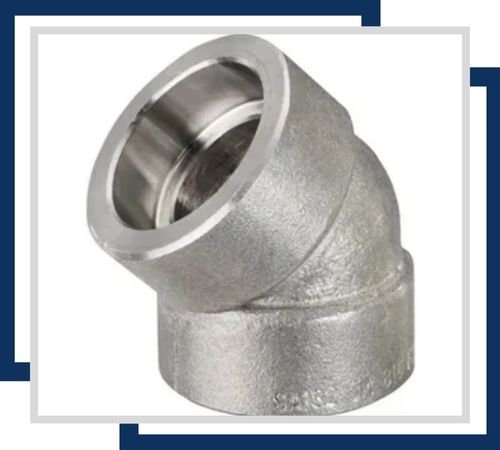

These elbows provide excellent corrosion resistance and are ideal for applications involving high temperatures. They are available in sizes from 1/2 inch to 4 inches and are used to change the direction of flow in piping systems by 45 degrees.

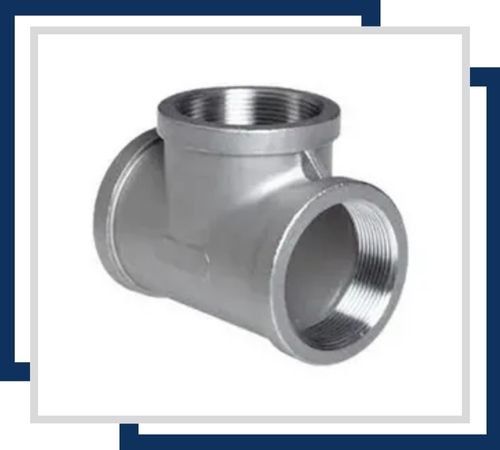

Threaded tees made of SS 310 exhibit superior resistance to high-temperature oxidation and corrosion. Common sizes range from 1/4 inch to 4 inches. These tees are used to branch out pipelines and provide a secure connection in high-pressure systems.

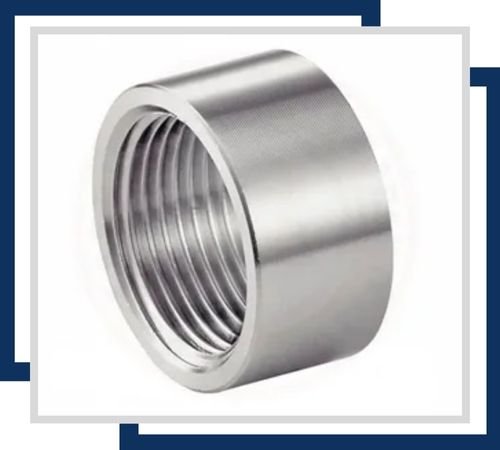

Offering excellent corrosion resistance, threaded half couplings are used to connect two pipes in high-temperature applications. Sizes typically range from 1/8 inch to 4 inches. They are ideal for creating a connection in the middle of a pipe.

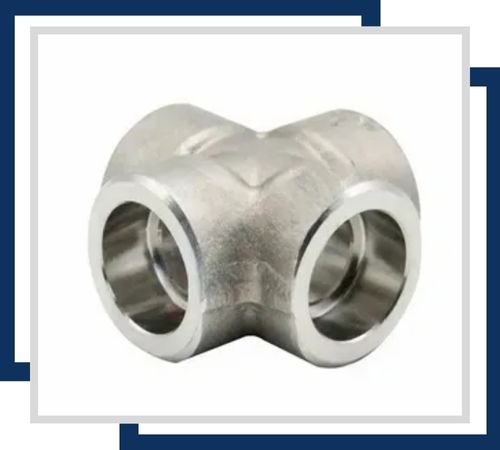

Socket weld crosses in SS 310S provide high resistance to oxidation and are used in high-pressure systems. They are available in sizes from 1/2 inch to 4 inches and allow for the intersection of four pipes, ensuring a robust connection.
In practice, these fittings are indispensable in sectors where failure is not an option. You will find them performing reliably in the high-temperature piping systems of petrochemical plants, power generation facilities, and in critical industrial furnace components. They are also the preferred choice for handling aggressive chemicals and in high-temperature food processing lines. Essentially, wherever extreme heat and corrosion are a concern, our Stainless Steel 310/310S Forged Fittings provide the dependable, long-lasting connection needed for safe and efficient operations.
