Akor Stainless stands as your trusted partner for high-performance industrial materials right here in Abuja, Nigeria. We specialize in providing top-quality Stainless Steel 309H Pipes, engineered to meet the rigorous demands of challenging environments. Our commitment is to supply products that offer exceptional durability and reliability, ensuring your projects benefit from superior materials backed by local expertise and dependable service. We understand the critical nature of your operations and are dedicated to being your go-to source for solutions that last.
The strength of our 309H pipes comes from a carefully balanced composition, rich in chromium and nickel for outstanding oxidation resistance. This is further enhanced by a higher carbon content, which gives these pipes remarkable mechanical properties. They maintain excellent strength and structural integrity even when subjected to the intense, sustained heat of high-temperature applications, making them a fundamentally robust choice for demanding industrial settings.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
309H | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
309H | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
high-quality Stainless Steel 309H Pipes We tested to make sure durability and strength. Their pipes undergo high-quality tests; mechanical analysis is done and chemicals are checked and tested in full compliance with industries. The respective certificates of conformity are issued against every product for full compliance with reliability criteria for its quality and performance.
Stainless 309H Square Pipes are square-shaped pipes made from 309H stainless steel, offering high-temperature resistance, durability, and corrosion resistance, ideal for structural and high-heat applications.

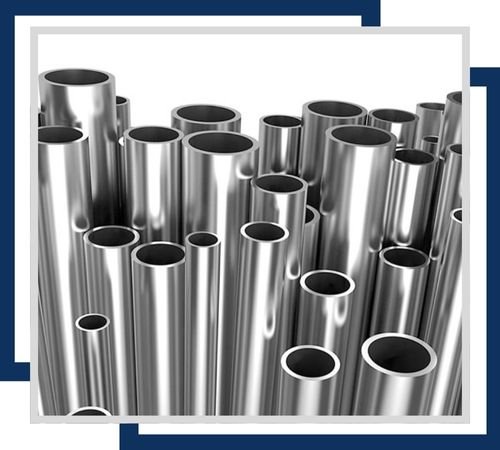

SS 309H Seamless Pipes are pipes made from 309H stainless steel without welded seams, providing superior strength, high-temperature resistance, and excellent durability for demanding industrial and high-heat applications.

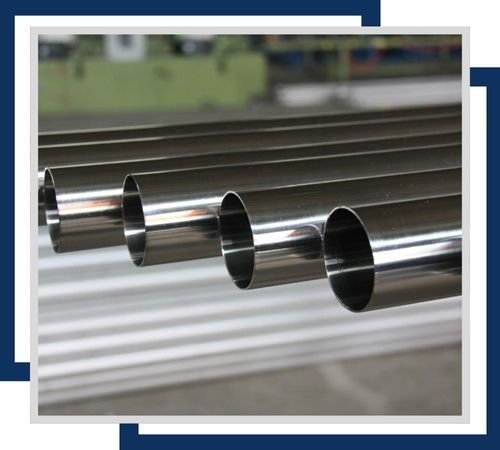

Stainless Steel 309H ERW Pipes are electric resistance welded pipes made from 309H stainless steel, known for high-temperature resistance and durability, used in various industrial and heat-intensive applications.
SS 309H LSAW Pipes are longitudinally submerged arc welded pipes made from 309H stainless steel, offering high heat resistance and strength, suitable for high-pressure and high-temperature industrial applications.

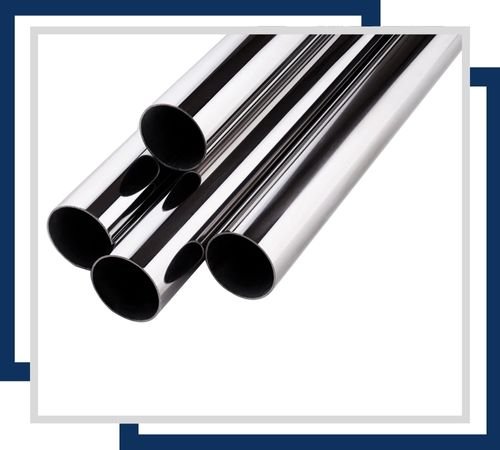

Stainless Steel 309H Round Pipes are cylindrical pipes made from 309H stainless steel, providing excellent heat resistance, durability, and corrosion resistance, ideal for high-temperature and industrial applications.

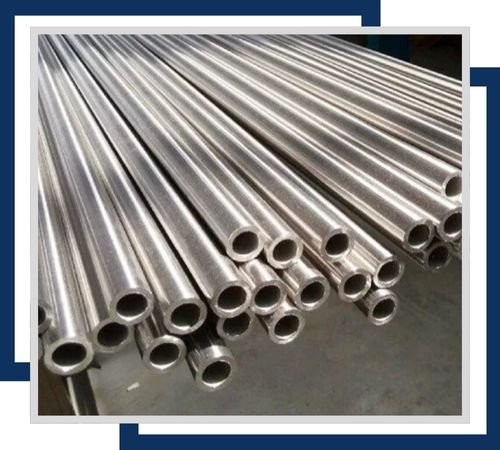

Stainless Steel 309H Welded Pipes are made from 309H stainless steel, joined by welding. They offer high-temperature resistance, durability, and strength, suitable for various industrial and high-heat applications.
You will find these pipes are indispensable in environments where heat is a constant factor. They are ideally suited for furnace parts, heat exchangers, and radiant tubes, where their ability to withstand extreme temperatures prevents failure and extends equipment life. Beyond high-heat industrial processing, Stainless Steel 309H Pipes are also a preferred material for welding fittings on dissimilar metals, ensuring strong, durable joints in complex assemblies across various sectors.
