Akor Stainless is your trusted partner in Abuja for premium stainless steel solutions, bringing reliability and expertise directly to Nigeria’s vibrant industrial landscape. We specialize in supplying high-performance materials like Stainless Steel 309 Bars, understanding the unique demands of local projects. Our commitment is to provide not just a product, but a dependable resource backed by knowledgeable support, ensuring your fabrication and construction needs are met with materials that guarantee durability and long-term performance in even the most challenging environments.
Stainless Steel 309 Bars are known for their exceptional resistance to high temperatures and oxidation, thanks to a composition rich in chromium and nickel. This alloy is carefully balanced to maintain its strength and structural integrity even when exposed to intense heat. It possesses excellent mechanical properties, including good ductility and toughness, which allow it to be fabricated into complex components without compromising its ability to withstand thermal cycling and corrosive atmospheres, making it a remarkably resilient material.
| Specifications | ASTM A276, ASTM A479 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 309 Round Bars | Outside Diameter in the range of 4mm to 500mm |
| SS 309 Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| SS 309 Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| SS 309 Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| SS 309 Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Element | Content (%) |
Iron, Fe | 60 |
Chromium, Cr | 23 |
Nickel, Ni | 14 |
Manganese, Mn | 2 |
Silicon, Si | 1 |
Carbon, C | 0.20 |
Phosphorous, P | 0.045 |
Sulfur, S | 0.030 |
Properties | Metric | Imperial |
Tensile strength | 620 MPa | 89900 psi |
Yield strength (@ strain 0.200%) | 310 MPa | 45000 psi |
Izod impact | 120 – 165 J | 88.5 – 122 ft-lb |
Shear modulus (typical for steel) | 77 GPa | 11200 ksi |
Elastic modulus | 200 GPa | 29008 ksi |
Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
Elongation at break (in 50 mm) | 45% | 45% |
Hardness, Brinell | 147 | 147 |
Hardness, Rockwell B | 85 | 85 |
Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Contact us to get a quick quote for your requirement.
We carries out rigorous performance tests on complete batches of Stainless Steel 309 Bars with regards to chemical composition, mechanical properties, and the degree of corrosion resistance. Our products are certified by recognized authorities regarding conformity to international standards for ensuring reliability and consistency with every delivery.

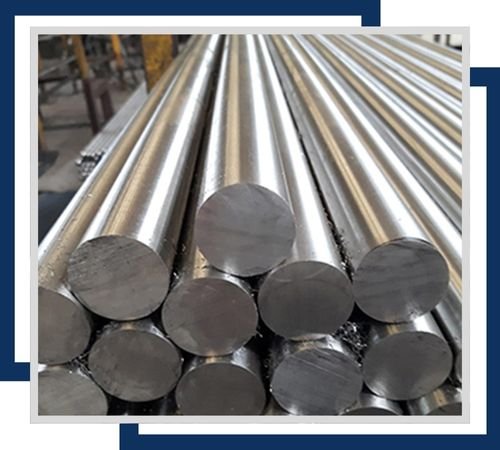

Stainless Steel 309 Round Bars offer excellent corrosion resistance and are available in diameters ranging from 6 mm to 200 mm. Ideal for high-temperature applications and structural uses, they ensure durability and strength.

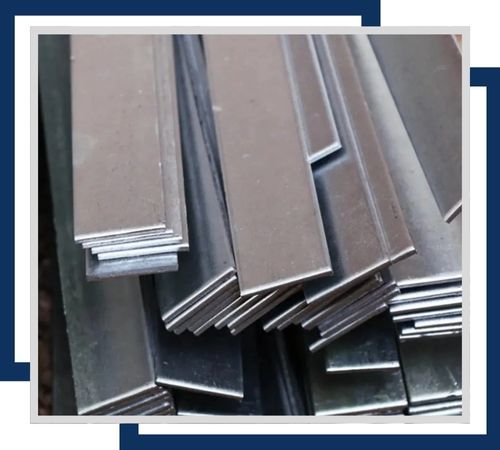

Featuring good corrosion resistance, Stainless Steel 309 Flat Bars come in widths from 20 mm to 150 mm and thicknesses from 5 mm to 50 mm. These bars are used in construction, manufacturing, and industrial applications for their thermal stability.

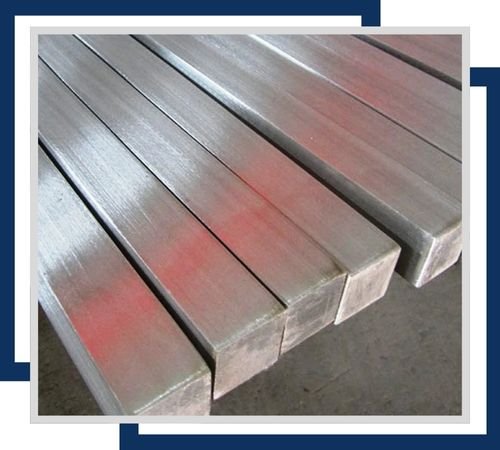

Known for their corrosion resistance, Stainless Steel 309 Square Bars are available in sizes from 10 mm to 100 mm. They are utilized in various structural and industrial applications where strength and heat resistance are required.

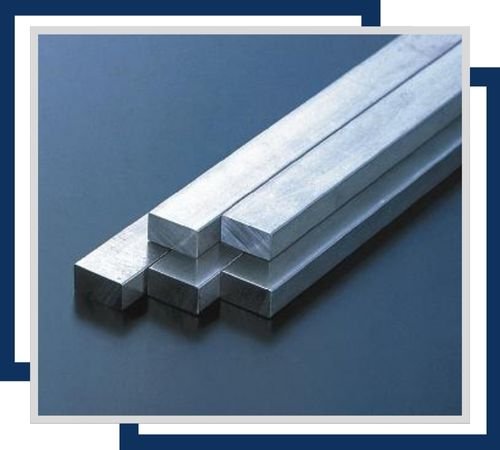

Stainless Steel 309 Rectangular Bars provide corrosion resistance and are offered in dimensions like 20 mm x 10 mm to 150 mm x 50 mm. These bars are suitable for use in high-temperature environments and structural applications.

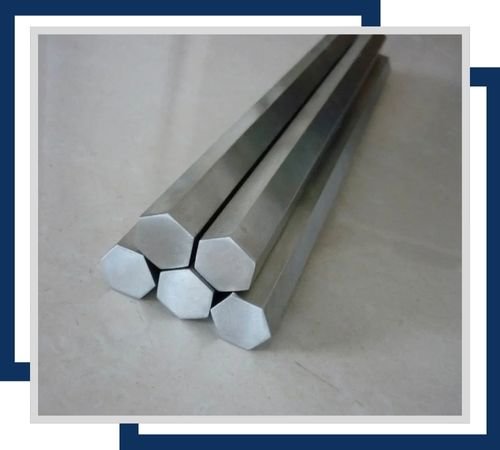

Offering corrosion resistance, Stainless Steel 309 Hexagonal Bars are available in sizes ranging from 6 mm to 50 mm across flats. They are often used in machining, fabrication, and for applications requiring heat resistance.

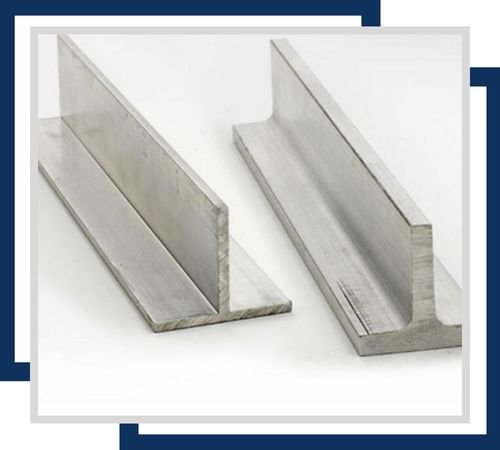

Stainless Steel 309 T-Bars are known for their high-temperature resistance and oxidation resistance. Available in sizes ranging from 15 mm x 15 mm x 6 mm to 100 mm x 100 mm x 12 mm, they are used in industrial applications such as heat exchangers and furnace components, providing durability and strength in extreme conditions.
The standout characteristic of Stainless Steel 309 Bars is their ability to perform in high-heat situations, which is why they are a common choice for critical components in industrial furnaces, heat treatment equipment, and thermal processing systems. You’ll also find them extensively used in the construction of kilns, boiler components, and refinery piping where temperatures can soar. Their robustness makes them equally valuable for general fabrication projects in Abuja that require a material with superior corrosion resistance and lasting strength under demanding conditions.
