As a trusted manufacturer and supplier right here in Abuja, Akor Stainless is proud to provide high-quality Stainless Steel 304H tubing to industries across Nigeria. We understand the demanding environments our clients operate in, which is why we focus on delivering materials that offer exceptional reliability. Our 304H tubing is specifically engineered for superior performance in high-temperature settings, ensuring your projects benefit from both strength and longevity. We are committed to supporting local growth with products you can depend on.
The strength of 304H tubing comes from its carefully balanced composition, which includes a higher carbon content than standard 304 grades. This specific formulation is key to its enhanced performance at elevated temperatures, providing excellent resistance to creep and deformation. Mechanically, it maintains good ductility and toughness, allowing it to be fabricated into complex systems while holding up under significant pressure and stress, making it a robust choice for critical applications.
| Alloy 304H Standards | Stainless Steel 304H |
|---|---|
| ASTM A213 Stainless Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| ASTM A249 TP 304H Stainless Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| ASTM A269 TP 304H Stainless Steel Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| ASME SA213 TP 304H Stainless Steel Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| SS 304H Length | Single Random, Double Random, Standard & Cut length Tube |
| UNS S30409 Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| ASTM A213 Gr. TP304H Form | ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
| ASTM A269 TP 304H Stainless Steel Type | Seamless, ERW, EFW, Welded, Fabricated Tube |
| ASTM A213 Stainless Steel End | Plain End, Beveled End, Treaded Tube |
| ASME SA213 SS 304H Marking | All 304h Stainless Steel Tube are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| ASME SA213TP 304H Stainless Steel Application | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
| 304H SS Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Stainless Steel 304H Specialize in | Stainless Steel 304H Capillary Tube & Other Odd Size Alloy 304H Heat Exchanger & Condenser Tube |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.
We assures that all its Stainless Steel 304H Tubing is thoroughly tested for quality and performance. Mechanical properties, corrosion resistance, and dimensional accuracy of the tubing are tested. The following certificates are also provided: Material Test Reports (MTR), 3.1 certificates, and ISO compliance, ensuring industry standards and reliability.

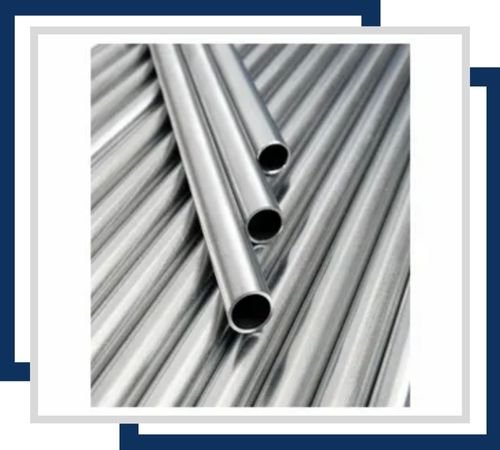

These tubes offer superior corrosion resistance, ideal for high-pressure applications. Sizes typically range from 1/8″ to 24″ in diameter. They provide excellent durability and are used in industries requiring precise tolerances.

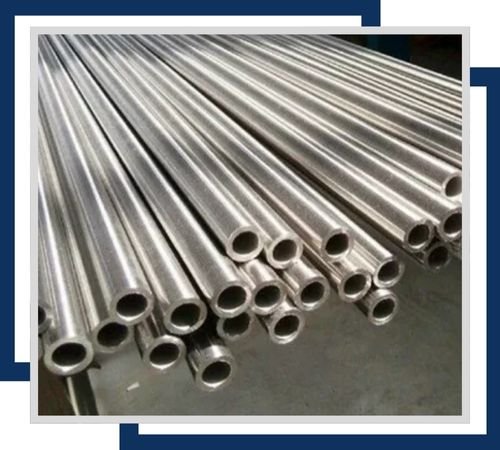

Known for its excellent corrosion resistance, this tubing is available in sizes from 1/8″ to 24″. It’s cost-effective for less critical applications and offers good strength and flexibility for various uses.

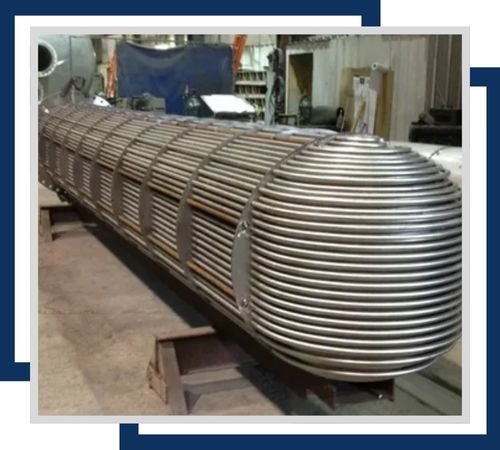

These tubes excel in corrosion resistance and thermal conductivity. Common sizes range from 1/2″ to 1-1/2″ in diameter, designed for efficient heat transfer in industrial applications.

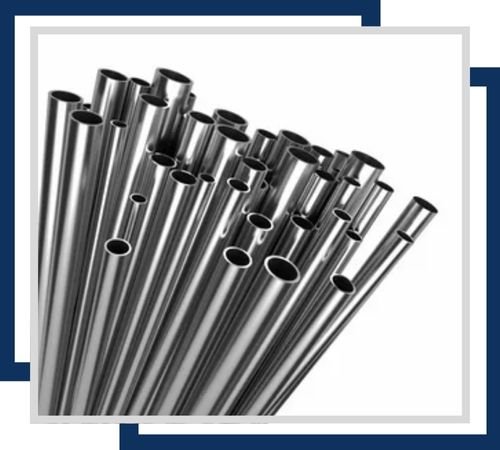

Providing high corrosion resistance, these tubes are typically available in sizes from 1/16″ to 2″. They are crucial for precise instrumentation and control systems in various industries.

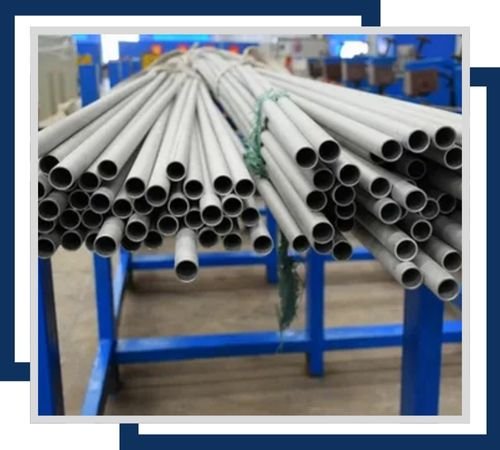

These corrosion-resistant tubes come in sizes typically from 1/2″ to 5″ in diameter. They are designed to withstand high temperatures and pressures in boiler systems.

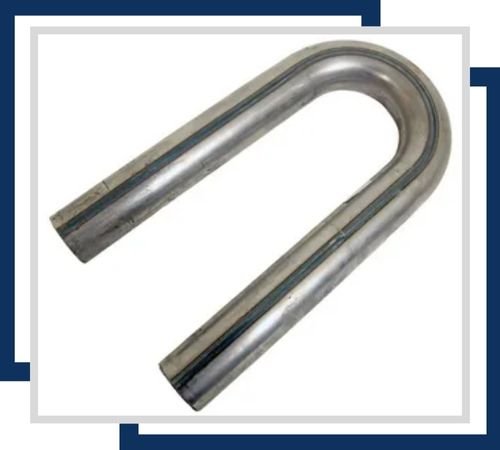

Featuring high corrosion resistance, these U-shaped tubes are available in sizes from 1/2″ to 1-1/2″. They are commonly used in heat exchangers and condensers for efficient thermal management.

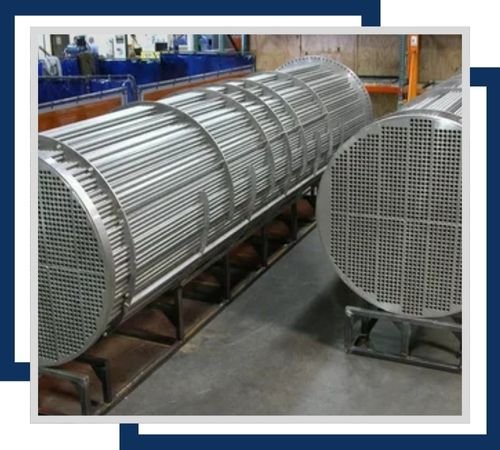

Known for its superior corrosion resistance, this tubing ranges from 3/8″ to 1-1/4″ in diameter. It’s used in condensers to efficiently transfer heat and condense steam into water.

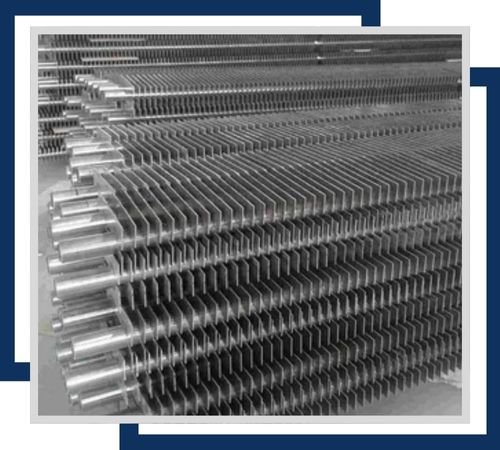

These tubes offer excellent corrosion resistance and are available in sizes typically from 1/2″ to 1-1/2″. They are used in applications requiring enhanced heat transfer efficiency due to their extended surface area.
This tubing is ideally suited for applications where heat is a constant factor. You will commonly find it in the heart of power generation plants, within the intricate piping systems of chemical processing facilities, and in the high-temperature exhaust systems of various industrial equipment. Its ability to maintain integrity under thermal stress also makes it a preferred material for heat exchangers, boilers, and other components where failure is not an option, ensuring safe and efficient operations day in and day out.
