Akor Stainless, located in Abuja, Nigeria, has earned a solid reputation as a reliable manufacturer and supplier of Stainless Steel 17-4 PH Sheets and Plates in Bangkok, Thailand. They’re well-known for providing top-notch stainless steel products, ensuring that every sheet and plate adheres to international standards for both performance and durability. Thanks to their cutting-edge production technology and rigorous quality control, Akor Stainless delivers materials that boast impressive corrosion resistance, high strength, and remarkable toughness. The company is committed to catering to the varied needs of industries throughout Thailand, guaranteeing a dependable supply and outstanding customer service with every order.
The Stainless Steel 17-4 PH Sheets and Plates are made up of iron, along with 15–17.5% chromium, 3–5% nickel, and 3–5% copper, plus small amounts of manganese, silicon, and niobium. They can achieve a tensile strength of up to 1100 MPa and a yield strength of around 1000 MPa after heat treatment. This alloy is known for its excellent corrosion resistance, hardness, and solid mechanical properties even at temperatures reaching 600°F (316°C). Its martensitic structure, enhanced through precipitation hardening, makes it perfect for high-stress environments.
| Grade | C | Mn | Si | P | S | Cr | Mo |
| SS 17-4PH | 0.07 max | 1.0 max | 1.0 max | .07 max | .03 max | 17.5 – 15.0 | .05 |
| Grade | Ultimate Tensile Strength, psi | Yield Strength, psi | Elongation | Rockwell Hardness |
| SS 17-4PH | 160,000 | 145,000 | 5% | C35 |
Contact us to get a quick quote for your requirement.

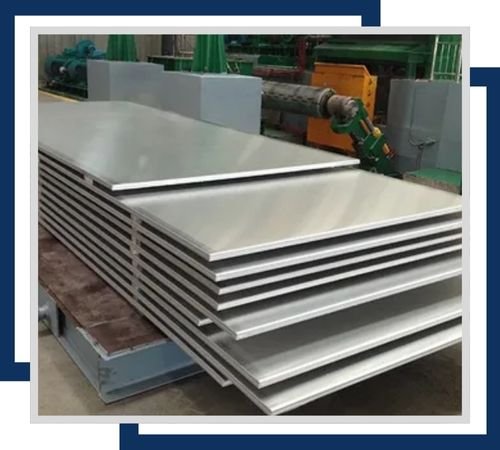

Stainless Steel 17-4 PH Hot Rolled Sheets and Plates is available in any size. Sizing usually takes place between 3mm-150mm thick. The characteristics of the SS 17-4 PH are that they show excellent strength with high hardness in them, making their application possible under heavy wear resistance application.

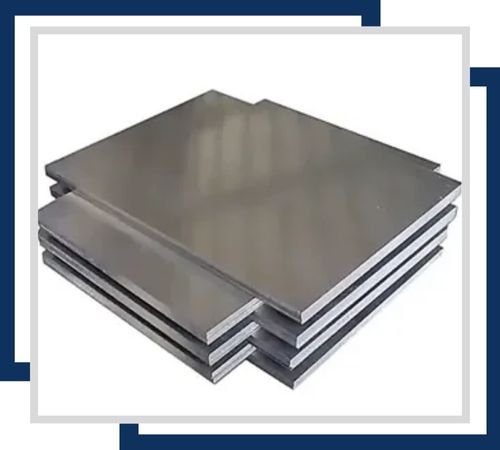

Stainless Steel 17-4 PH Cold Rolled Sheets are available in 0.3mm to 6mm in thickness and up to 1500mm in width with a smooth surface finish. These sheets have improved mechanical properties and dimensional accuracy, thus suitable for precision components. It retains good corrosion resistance, suitable for aerospace and pharmaceutical industries.
Stainless Steel 17-4 PH Chequered Plates are offered in thickness between 3mm and 12mm with sizes up to 2500mm x 1250mm. Patterns give this chequered plate a slip resistance surface, making it aptly suited for industrial floors and stair treads. Corrosion resistance is excellent due to this alloy and ensures that durable service in harsh conditions will be possible.

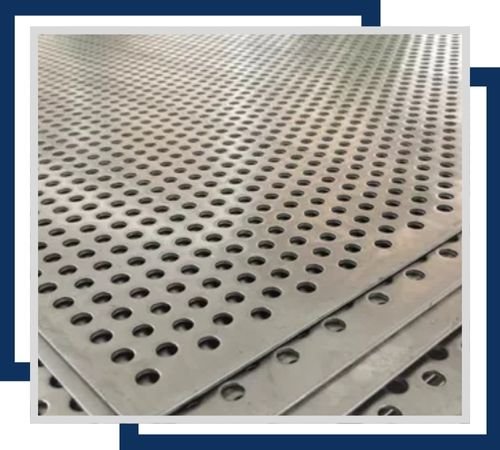

Stainless Steel 17-4 PH Perforated Plates are available in a range of thicknesses from 1mm to 10mm and various hole sizes and patterns. The perforated design of these plates is used for filtration, ventilation, and decorative applications. They maintain high strength and corrosion resistance, making them suitable for marine and chemical processing industries.

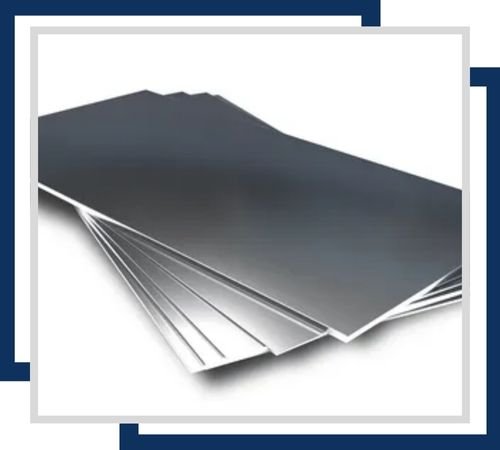

Stainless Steel 17-4 PH Shim Sheets are precision thin sheets ranging from 0.1mm to 5mm in thickness and available in various dimensions. These sheets are used for precise alignment and spacing in machinery and equipment. They offer excellent corrosion resistance and durability in challenging environments.

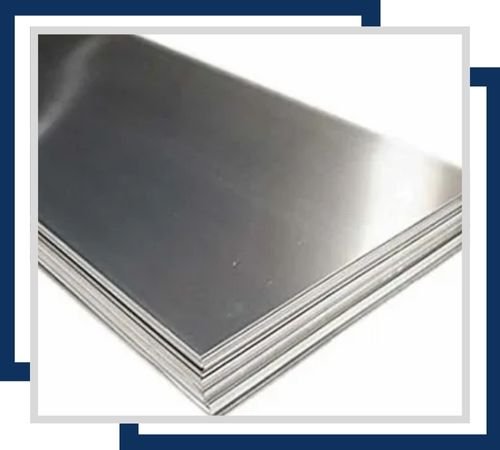

Stainless Steel 17-4 PH Polished Plates are made in the following thicknesses, from 1mm up to 8mm, and size up to 2500mm x 1250mm. The plates possess a reflective surface finish. Such plates are used for architectural and decorative purposes where the aesthetic value is important and where corrosion resistance is required. The plates offer high strength and durability under outdoor and corrosive conditions.
Akor Stainless provides a seamless experience to the customers by offering all documents for the high-quality Stainless Steel 17-4 PH Sheets and Plates. We provide necessary documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports in order to establish authenticity and quality of the product. All the Stainless Steel 17-4 PH Sheets and Plates have numerous test certificates that include MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates to ensure our dedication to customer satisfaction and continuous pursuit of product excellence.
These Stainless Steel 17-4 PH Sheets and Plates find extensive use in the aerospace, chemical, petrochemical, and marine sectors. Their fantastic blend of strength and corrosion resistance makes them ideal for applications like turbine blades, nuclear reactor components, chemical processing equipment, and high-performance valves. Additionally, they’re utilized in food processing machinery, the paper and pulp industries, and oil and gas applications where durability and resistance to tough conditions are crucial. Their versatility and mechanical reliability have made them a top choice for demanding engineering projects.
