Home > Sheet and Plates > SS 15-5 PH Sheet and Plates
Akor Stainless is a top-notch manufacturer and supplier located in Abuja, Nigeria, focusing on high-quality stainless steel products. One of their standout offerings is the SS 15-5 PH sheet and plate, which is celebrated for its exceptional strength, resistance to corrosion, and impressive toughness. Built to handle the tough demands of various industrial applications, Akor Stainless guarantees that each sheet and plate meets international quality standards. With a strong dedication to precision engineering, timely deliveries, and customer satisfaction, Akor Stainless has made a name for itself in Abuja as a reliable source for stainless steel solutions, catering to industries throughout Nigeria and beyond.
The SS 15-5 PH stainless steel sheets and plates from Akor Stainless in Abuja are made from a martensitic precipitation-hardening alloy. Typically, this alloy contains about 15% chromium and 4–5% nickel, along with copper, manganese, and trace amounts of carbon and phosphorus to boost hardness. This unique blend results in remarkable mechanical properties, including high yield strength, excellent tensile strength, and outstanding toughness. Additionally, the material boasts impressive resistance to corrosion and stress corrosion cracking, making it perfect for challenging environments. Precision heat treatment processes further enhance its hardness and durability for industrial use.
| Specification : | ASTM A564 / ASME SA564 AMS 5643 |
| Standard : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length : | 1 to 6 Meters, Custom Cut Lengths |
| Form : | Round, Square, Hex (A/F), Rectangle Etc. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
Contact us to get a quick quote for your requirement.

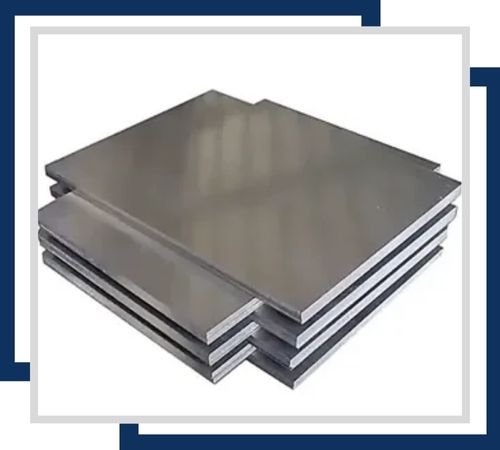

SS 15-5 PH cold-rolled sheets and plates are precision-formed stainless steel alloys that provide high strength, corrosion resistance and superior mechanical properties, Cold rolled for improved surface finish and tight tolerances. They are commonly used in high-performance applications such as aerospace, chemical processing, and construction materials, providing excellent durability and reliability

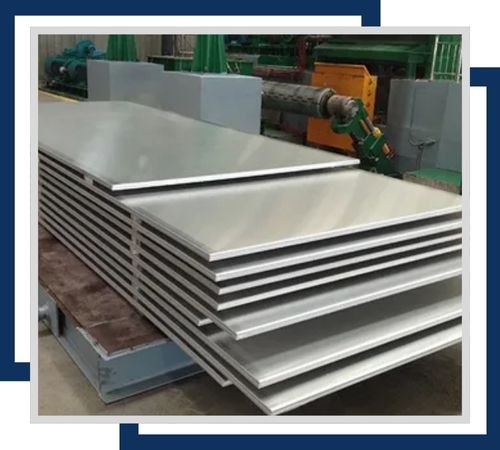

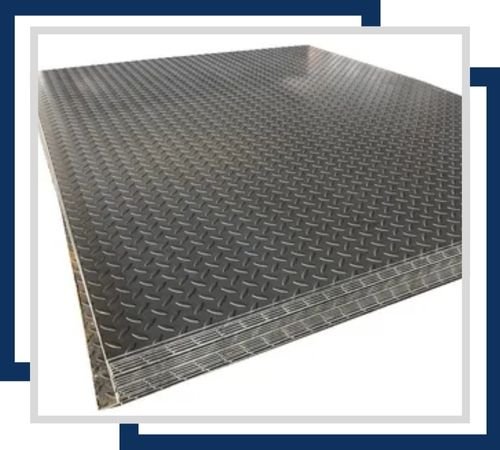

SS 15-5 PH is precipitation hardened sheet and plates, used in aerospace, marine, and chemical industries for high strength, corrosion resistance. They have excellent mechanical properties, hence provide durability along with resistance to stress corrosion cracking. Chequered plates are textured surface that provides improved grip and anti-slip properties.

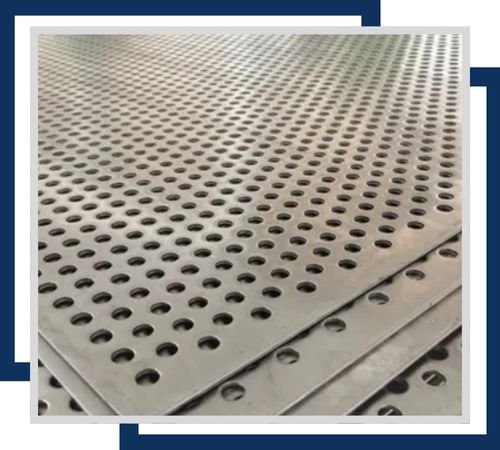

SS 15-5 PH is a good precipitation-hardening stainless steel available in sheet and plate form. Such perforated sheets and plates would offer a suitable combination of both strength and function with precise holes as filtration, venting, aesthetic design, retaining excellent mechanical properties.

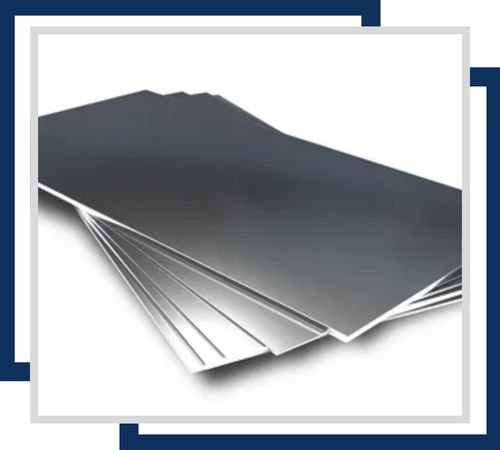

SS 15-5 PH (Precipitation Hardened) sheets and plates are high strength, corrosion resistant stainless steel. Shim sheets of SS 15-5 PH provide uniform thickness, providing excellent dimensional accuracy for gaps and locations in machinery or buildings for widespread applications in air, space, chemical and technology to increase performance.

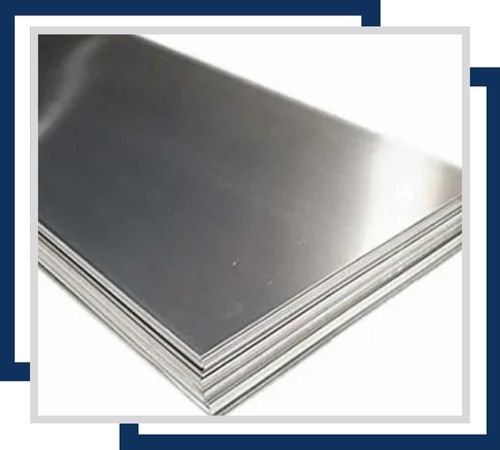

The polished SS 15-5 PH (Precipitation Hardened) plate is made of corrosion-resistant stainless steel with a smooth and luminous surface This plate provides excellent mechanical properties and resistance to compression which is difficult to crack. Commonly used in aerospace, marine and medical applications, they offer functional and aesthetic benefits along with excellent durability.
Akor Stainless promises to serve customers with outstanding service, followed by detailed documents regarding high-quality sheets and plates for stainless steel 15-5 PH sheet and plate. Some of these basic documents consist of a commercial invoice, a packing list, fumigation certificate, a heat treatment chart, quality assurance plan, and the lab test report issued from NABL-approved labs. Such documents of the products bring us closer to the trust with the valued customer. In addition, we provide our Stainless Steel 15-5 PH Sheets and Plates with various test certificates, including MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates represent our commitment to quality and satisfaction of the customer.
Akor Stainless’s SS 15-5 PH sheets and plates are widely utilized across various industries due to their strength, corrosion resistance, and versatility. They are particularly well-suited for aerospace components, chemical processing equipment, medical instruments, and automotive parts, where durability and reliability are essential. Moreover, these sheets and plates find applications in marine environments, structural projects, and high-performance engineering tasks. The combination of excellent mechanical properties and the ability to endure harsh conditions makes this material a top choice for engineers.
