AWS Class ER316/316H MIG and TIG filler wire and rod is a specialized stainless steel welding consumable crafted for both MIG (GMAW) and TIG (GTAW) processes. It’s perfect for welding austenitic stainless steels like Grades 316, 316L, and 316H. The “H” variant stands out with a slightly higher carbon content (around 0.04–0.08%), which boosts its tensile and creep strength at higher temperatures, all while keeping its impressive corrosion resistance thanks to the molybdenum it contains.
When it comes to typical weld metal composition, you can expect carbon levels of 0.04–0.08% for the H variant, along with chromium at 18–20%, nickel at 11–14%, molybdenum at 2–3%, manganese at 1–2.5%, and silicon at 0.3–0.65%. In terms of mechanical properties, it boasts a tensile strength of about 608 MPa and an elongation of roughly 35–40%, ensuring that the welds are not only durable but also resistant to corrosion.
| Classification | AWS A5.9, ER316/316H |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER316/316H MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.03 | 18.0-20.0 | 11.0-14.0 | 2.0-3.0 | 1.0-2.5 | 0.30-0.65 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 80 |
| Tensile Strength, kpsi: | 55 |
| Elongation%, min: | 40 |
Contact us to get a quick quote for your requirement.

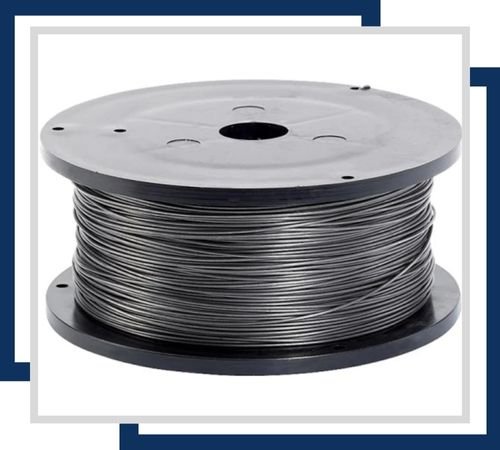

ER316/316H MIG filler wire provides excellent corrosion resistance and strength, ideal for welding stainless steels in chemical, petrochemical, and marine applications, with high durability in harsh environments.

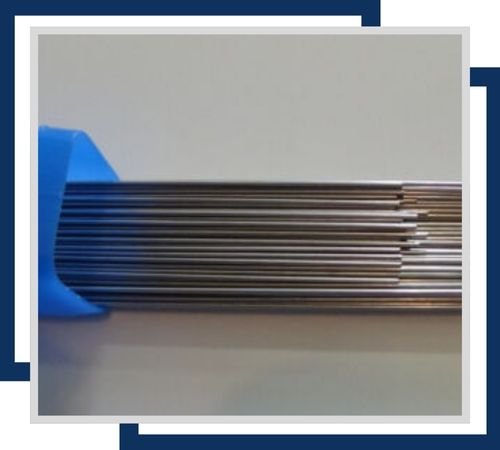

ER316/316H TIG filler wire ensures superior corrosion resistance and strength for precise welding of stainless steels, suitable for high-temperature environments in industries like chemical processing and aerospace.

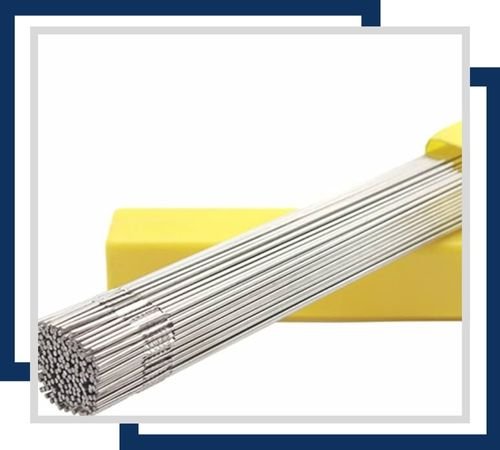

ER316/316H TIG filler rod offers excellent resistance to corrosion and high temperatures, ideal for welding and repairing stainless steel components in demanding applications, including chemical and marine industries.
We conduct rigorous in-house testing to ensure the highest quality and performance standards for our AWS Class ER316/316H MIG and TIG Filler Welding Wire and Rod. Our commitment to quality includes thorough inspection processes to meet industry requirements. Ensuring reliable and consistent products. With a focus on timely service, we guarantee prompt delivery, ensuring that our customers receive their orders without delay, every time.
You’ll find ER316/316H filler wire and rod commonly used in various applications, including chemical and petrochemical equipment, power generation components, heat exchangers, piping, marine and offshore structures, as well as tank or vessel fabrication. It’s especially favored in situations where corrosion resistance, high-temperature strength, and reliability are absolutely essential.
